Superwinch LT Series Powersports Utility Winches

Change Vehicle
Superwinch Winches and Accessories

Superwinch LT Series Powersports Utility Winches

This product is universal fit. Please check fit and options before purchase.
Select Items to
Add to Cart
1140230
  • ColorBlack
  • Dimensions13.2 L x 4.25 W x 4.25 H (335.3mm L x 108mm W x 108mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed20 Amps Motor Draw/18 FPM (5.4 MPM)
  • MaterialSteel
  • Motor1.4 HP, sealed permanent magnet motor, 12V DC
  • Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
  • Net. Weight25 lbs (11.3kgs)
  • Rated Single Line Pull (Lbs)4000
  • Remote Control12 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch
  • Rope MaterialSynthetic
  • Warranty1 Year Limited Manufacturer
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelLT 4000 Series
$342.40
& Free Shipping!
In Stock

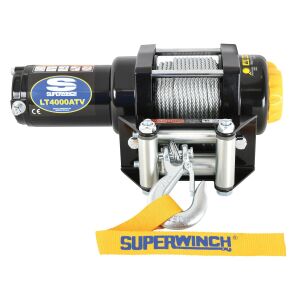

1140220
  • ColorBlack
  • Dimensions13.2 L x 4.25 W x 4.25 H (335.3mm L x 108mm W x 108mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed20 Amps Motor Draw/18 FPM (5.4 MPM)
  • MaterialSteel
  • Motor1.4 HP, sealed permanent magnet motor, 12V DC
  • Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
  • Net. Weight25 lbs (11.3kgs)
  • Rated Single Line Pull (Lbs)4000
  • Remote Control12 ft Rubber Sealed Hand-held plus Handle Bar Rocker Switch
  • Rope MaterialSteel Wire
  • Warranty1 Year Limited Manufacturer
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelLT 4000 Series
$278.20
& Free Shipping!
In Stock
1130220
  • ColorBlack
  • Dimensions13.2 L x 4.25 W x 4.25 H (335.3mm L x 108mm W x 108mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed15 Amps Motor Draw/27 FPM (8.3 MPM)
  • MaterialSteel
  • Motor1.2 HP, sealed permanent magnet motor
  • Mounting Bolt Pattern3.0in x 4.87in (76mm x 124mm)
  • Net. Weight20 lbs (9.0kgs)
  • Rated Single Line Pull (Lbs)3000
  • Remote Control12 ft Rubber Sealed Hand-held
  • Rope MaterialSteel Wire
  • Warranty1 Year Limited Manufacturer
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelLT 3000 Series
$256.80
& Free Shipping!
In Stock
1120210
  • ColorBlack
  • Dimensions11.0in L x 4.1in D x 4.1in H (285mm L x 105mm D x 105mm H)
  • EN CompliantNo
  • FinishPowder Coated
  • Line Speed10 Amps Motor Draw/10.0 FPM (3.0 MPM)
  • MaterialSteel
  • Motor1.0 HP, sealed permanent magnet motor
  • Mounting Bolt Pattern2 Hole, 3.15in (80mm) on Center
  • Net. Weight14.2 lbs (6.4kgs)
  • Rated Single Line Pull (Lbs)2000
  • Remote Control8 ft Handle Bar Mounted Rocker Switch
  • Rope MaterialSteel Wire
  • Warranty1 Year Limited Manufacturer
  • Winch HookHeavy-Duty, Clevis Pinned Latched
  • Winch ModelLT 2000 Series
$141.24
& Free Shipping!
In Stock
No Items Selected
Superwinch LT Series Powersports Utility Winches
10 Images

• Rated line pull from 2,000 - 4,000 lbs
• Sealed 1.0 - 1.4 HP permanent magnet motor
• 1-Stage and 3-Stage planetary gearing
• Dual relays and circuit breaker protected solenoid
• Free-spooling, pull and turn clutch
• Steel cable and synthetic rope available
• Heavy-duty, clevis pinned latched hook
• Heavy duty 4-way roller or aluminum machined hawse fairlead
• Handle bar mounted rocker switch and/or 12' hand-held remote

Built for action, the LT Series winches from Superwinch provides up to 4,000 lbs of amazing pulling power. The LT Series is a great choice for a quality, well-built winch that delivers a powerful pull season after season. Tried and true designs, perfected over the years, the LT Series offer unmatched durability and performance.

Mechanical Warranty: Limited 1 Year
Electronic Warrany: Limited 1 Year

Superwinch Warranty Policy
